ADG®-TT: Swivel Joint for Cryogenic Applications Down to -200° C (-328° F)
The ARTA ADG®-TT Swivel Joint for low temperatures controls premature wear by disallowing torque within hose lines and pipelines. The design incorporates an integral flexibility that also permits different sections of the pipe to rotate in relation to each other.
The cryogenic swivel joint is recommended for transporting LNG and LOX as well as other liquid and gaseous media down to -200° Celsius and -328° Fahrenheit.
The ADG®-TT Swivel Joint’s two connecting components are mounted on one or two ball bearing races, allowing pivotal movement and 360° rotation.
Reliable even at low temperatures

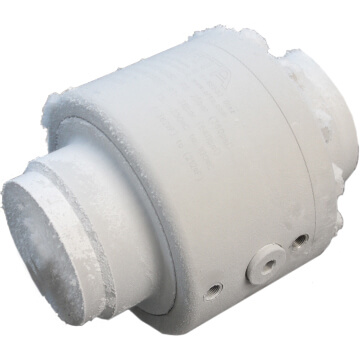

The ADG®-TT enables liquid and gas loading at low temperatures down to -200° Celsius or -328° Fahrenheit. The ADG®-TT remains fully functional even when frozen, making it ideal for application in the cryogenic sector.High compatibility due to its modular system
High compatibility due to its modular system ARTA offers the ideal swivel joint for every purpose, whether the joint is straight or curved, or employs a threaded or flanged connection.
Reduced wear and ease of handling
The swivel joint prevents the hose from twisting; this relieves and protects it. In addition, the ADG®-TT simplifies handling and turns rigid systems into flexible systems.High level of safety
Preventing twisting reduces the risk of a dangerous situation developing.Low maintenance and durability
ADG®-TT Swivel Joints maintain their usage longevity because they employ optimized ball races and high-quality materials. We also focused on designing our swivel joints to be as maintenance-free as possible. What little maintenance is necessary can be accomplished very quickly and easily.
ADG®-TT Swivel Joints were specifically developed for transporting liquid and gaseous media, such as cryogenic liquefied natural gas, cryogenic liquefied oxygen, ethylene, propylene or ethane, at extremely low temperatures. They can be used as a flexible pipe and hose components for suction and discharge lines. Our ARTA Swivel Joints are perfect for use on loading arms and hose dispensing points.
Ideally, the ADG®-TT rotary joint should be combined with an ASK®-TT Dry Break and an NTS®-SZ-TT emergency disconnect safety system for the cryogenic sector.
Cryo
Liquids
Gases
The most important technical data at a glance
| Sizes: | DN25 (1“) to DN200 (8“) |
| Pressure rating: | up to PN40 |
| Temperature range: | -200°C (-328°C) to +100°C (+212°F) |
| Body material: | Stainless Steel 1.4404 (316L) |
| Sealing: | PTFE |
| Connections: | Threads: NPT Flanges: DIN/EN, ANSI, ISO, ASME others on request |
| Conformities: | 2014/68/EU PED, 2014/34/EU ATEX, EN14432, 21 CRF Part 11, USP Code 6 |
