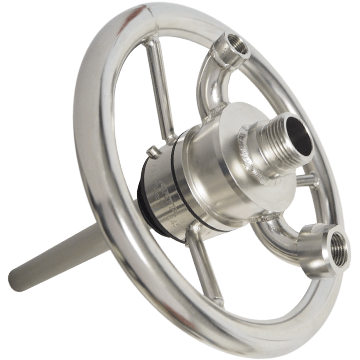

The ARTA AR-Filler is a drum-filling unit for fast, safe filling of barrels and other containers with liquid media.
You can connect the AR-Filler to the container through a gas-tight thread or a plug/clamp connection. Depending on the application, the filling unit is equipped with up to three additional connections, thanks to our three-in-one system. In addition to the connection for the product line, it is also possible to provide connections for gas recirculation and for an overfill sensor.

Optimum filling due to the overfill sensor

The optional integrated overfill sensor immediately shuts down the filling process when the maximum fill level is reached.

Integrated gas recirculation

The gas recirculation system protects the environment and the user, as it prevents any discharge of gas when the connection is released, while at the same time allowing for maximum filling.

Ease of handling using the hand wheel

The ergonomically optimized hand wheel ensures easy handling and quick connection from all positions.

High compatibility due to modular system design

The AR-Filler system is available in many different versions to allow you to find the right filler for every application. The AR-Filler system is recognized worldwide, and approved by international certification agencies. There are therefore no reservations to its use in various safety-related applications.

Fully verified by international certification entities

ARTA Filler Nozzles are safety-certified worldwide by global assessment and approval. Because of this consistent standing, no safety-related reservations regarding its use exist.


The most important technical data at a glance

Sizes:DN15 (1/2“) to DN65 (2 1/2“)
Pressure rating:PN16 (232psi) to PN40 (580psi)
Temperature range:-15°C to +80°C
Body material:Stainless Steel 1.4404 (316L) /1.4571 (316Ti) / HALAR coated Stainless Steel
Connections:on request
Approvals:2014/68/EU PED, 2014/34/EU ATEX, EN14432, 21 CRF Part 11, USP Code 6
